DIN 14620 Universal Rotating Support for Horizontal Screwing – Firm and Safe Base

The DIN 14620 Horizontal Screw-on Rotating Beacon is a base designed for the installation of LED beacons in emergency, industrial and special transport vehicles. Its robust structure with screw fixing guarantees stability and resistance in all types of conditions.

Main Features

1. DIN 14620 Standard Compatibility
   Designed to support DIN-based LED beacons , offering a safe and standardized installation.

2. Horizontal Screw Fixing
   The 113mm base with holes allows for firm fixing on flat surfaces, ideal for vehicles and metal structures.

3. Rotating Base for Greater Flexibility
   Its design allows the rotary to rotate , reducing vibrations and avoiding damage from impact or sudden movements.

4. High Strength Steel Construction
   Made from quality materials, it withstands harsh conditions and ensures long durability in industrial and emergency environments.

5. Integrated Wiring for Direct Connection
   Includes electrical wiring to facilitate the installation of the rotary without the need for additional adapters.

6. Compact and Strong Dimensions

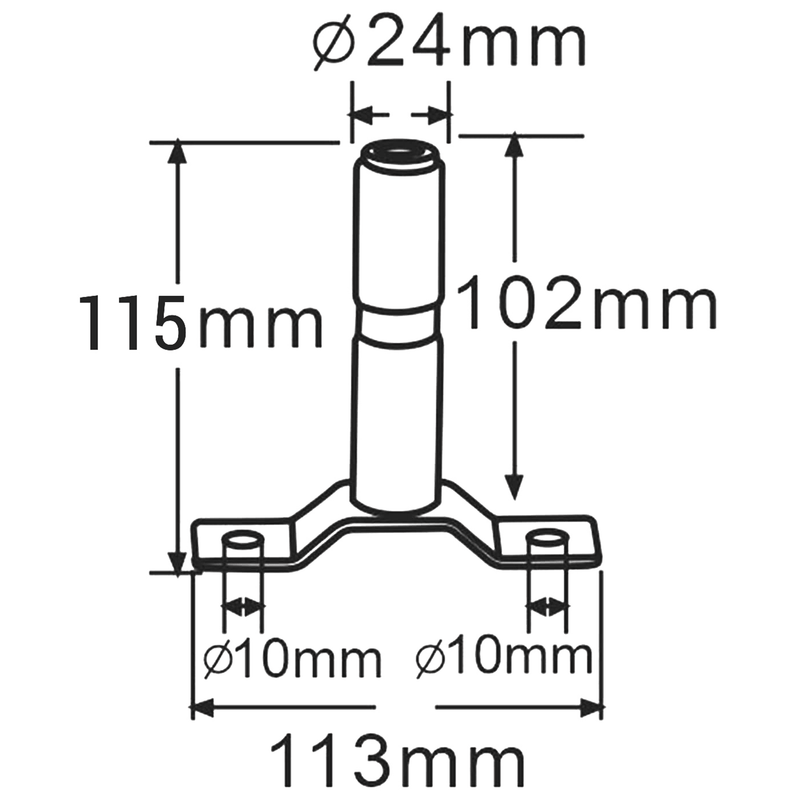

   With a diameter of Ø24 mm , a height of 115 mm and a base of 113 mm , it provides a secure installation without compromising vehicle space.

Technical Specifications

• Standard: DIN 14620
• Mounting: Horizontal screwing
• Material: Heavy duty steel
• Diameter: Ø24 mm
• Height: 115 mm
• Base: 113mm wide with screw holes
• Wiring: Integrated for electrical connection
